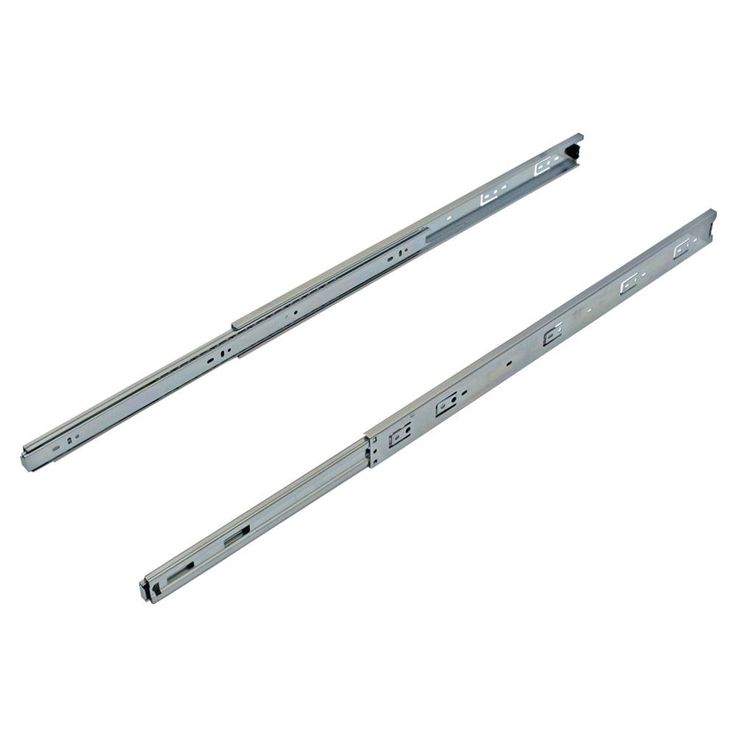

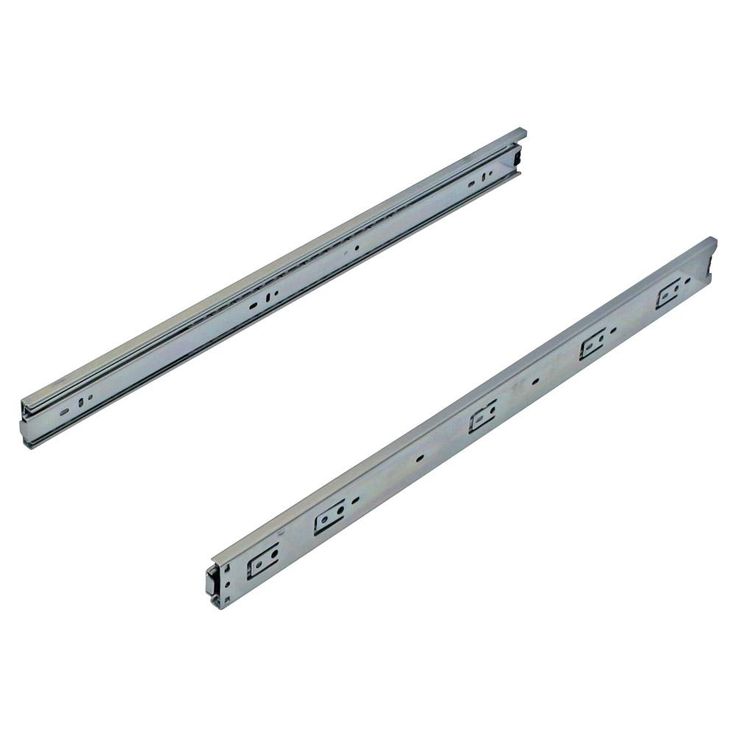

16 in. Side Mount Over Extension Ball Bearing Drawer Slides (10-Pair)

In Stock Hardwarestore Delivery

16 in. Side Mount Over Extension Ball Bearing Drawer Slides (10-Pair)

$88.13

Published price — same for everyone

Out of stock — available on backorder

SKU 1769056623

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

The 1175 Drawer Slide Series has a bright zinc finish and a ball bearing design that operates smoothly and is sturdy enough to support up to 100 lbs. The drawer is full extension and even features over-travel, meaning that the drawer can extend past the front of the cabinet (great for drawers under counter tops). It also has a lever disconnect for easy removal.
  • Bulk contractor box
  • Hardware fasteners not included due to application capacity and variances
  • Full extension slide with 1 in. over travel
  • 100 lbs. load capacity per pair
  • Actual slide spec dimension 400 mm (15-3/4 in.) L x 45.7 mm (1-3/4 in.) H
  • Easy lever disconnect for removing drawer box; 1/2 in. side clearance per side
  • Non-handed; steel ball bearings
  • Cabinet member slide features a front face frame mount screw hole for face frame-eliminates the use for a front face frame bracket
  • Optional back socket for face-frame applications use model number 39.1175


Features
Item Weight 2.54
Slide System Full Extension
Features Value Pack
Material Steel
Package Quantity 10
Finish Family Zinc
Weight load per set (lb.) 100
Mount Type Side Mount
Returnable 180-Day
Builders Hardware Product Type Drawer Slides
Drawer Slide Type Ball Bearing
Product Height (in.) 1.75
Slide Length (In.) 15.75
Maximum Expandable Length (in.) 32.50
Product Width (in.) .5
Manufacturer Warranty N/A
