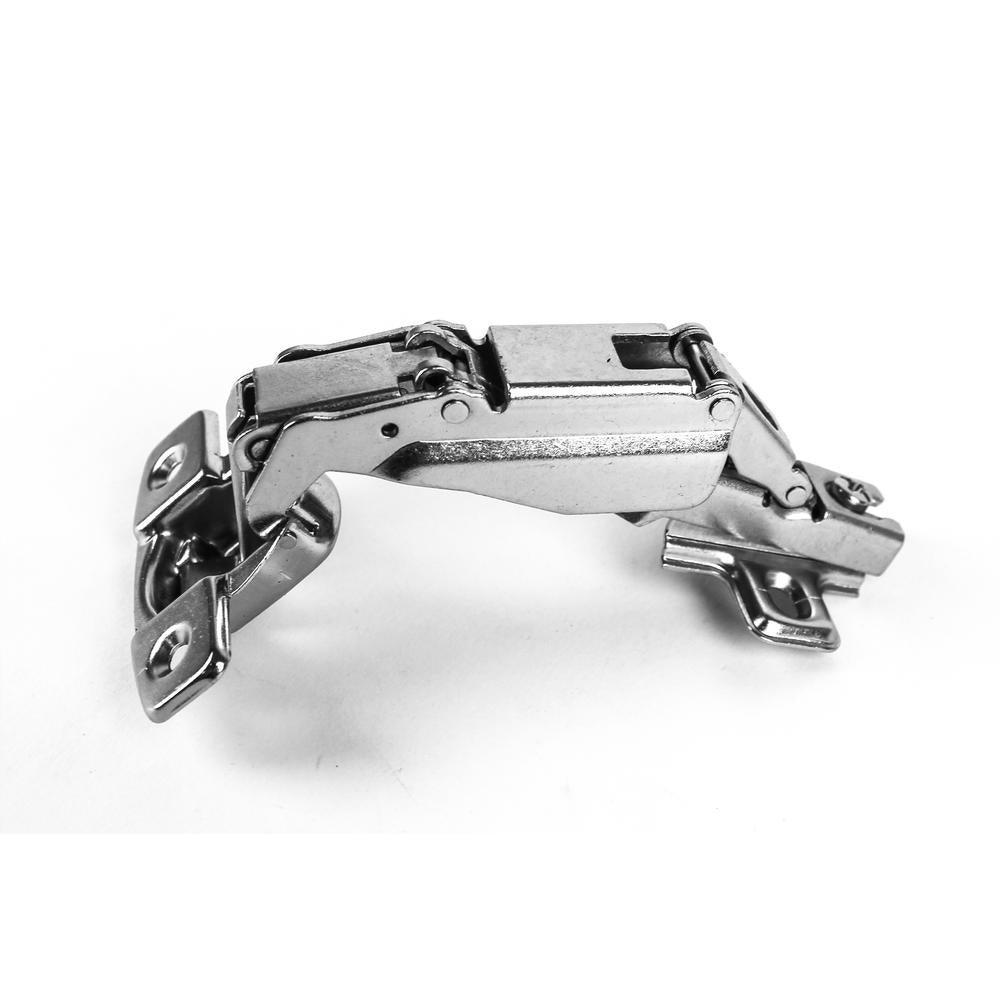

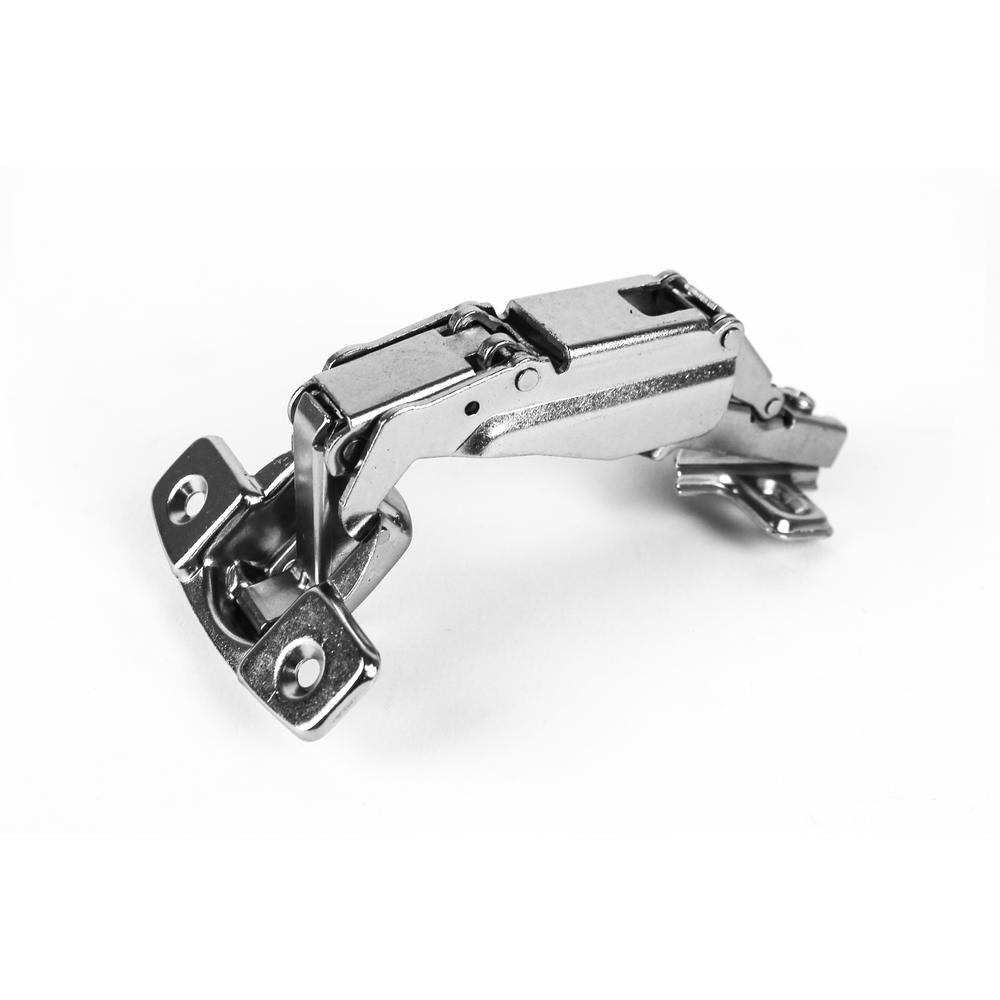

165-Degree 35 mm Full Overlay Frameless Cabinet Door Hinges with Installation Screws (5-Pairs)
$22.99
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU '312301552
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
These hinges are a type of hinge that has a spring built into it so when you start to close a cabinet door, the spring, at some point, takes over and pulls the cabinet door closed with a tap. These hinges used everywhere, from kitchen to office in frameless cabinets. Our hinges are for frameless cabinets.
Features
- You can use this hinge to replace just about any brand of current or obsolete standard European hinge, when replacing existing hinges, always replace both hinges and both mounting plates on the door, mixing different brands and types of European hinges can cause door binding problems
- Opening angle: 165°, overlay: full overlay, cup diameter: 1-2/5 in. (35 mm), cup depth: 1/2 in. (12.5 mm)
- Suitable door thickness: 3/5 in. to 1 in. (16 mm to 24 mm), screw hole center to center: 1-4/5 in. (45 mm), material: cold rolled-steel, finish: nickel plated
- Closing type: self close, adjustment: 3-way adjustable: side (minus 3 mm to plus 1 mm), depth (plus 3 mm to minus 1 mm) and height (plus 2 mm to minus 2 mm), cabinet type: frameless, bore distance: 1/8 in. to 1/3 in. (3 mm to 8 mm)
Features
| Item Weight | 3.1 |
| Number of Holes | 4 |
| Hinge Type | Full overlay |
| Hardware Finish Family | Nickel |
| Cabinet Frame Type | Frameless |
| Finish | Nickel Plated |
| Package Quantity | 10 |
| Hinge Opening (Degrees) | 165 |
| Features | Self Closing |
| Returnable | 180-Day |
| Material | Stainless Steel |
| Builders Hardware Product Type | Cabinet hinge |
| Product Height (in.) | 3.5 in |
| Product Width (in.) | 2.2 in |
| Product Depth (in.) | 0.5 in |
| Manufacturer Warranty | Yes |
