Apollo

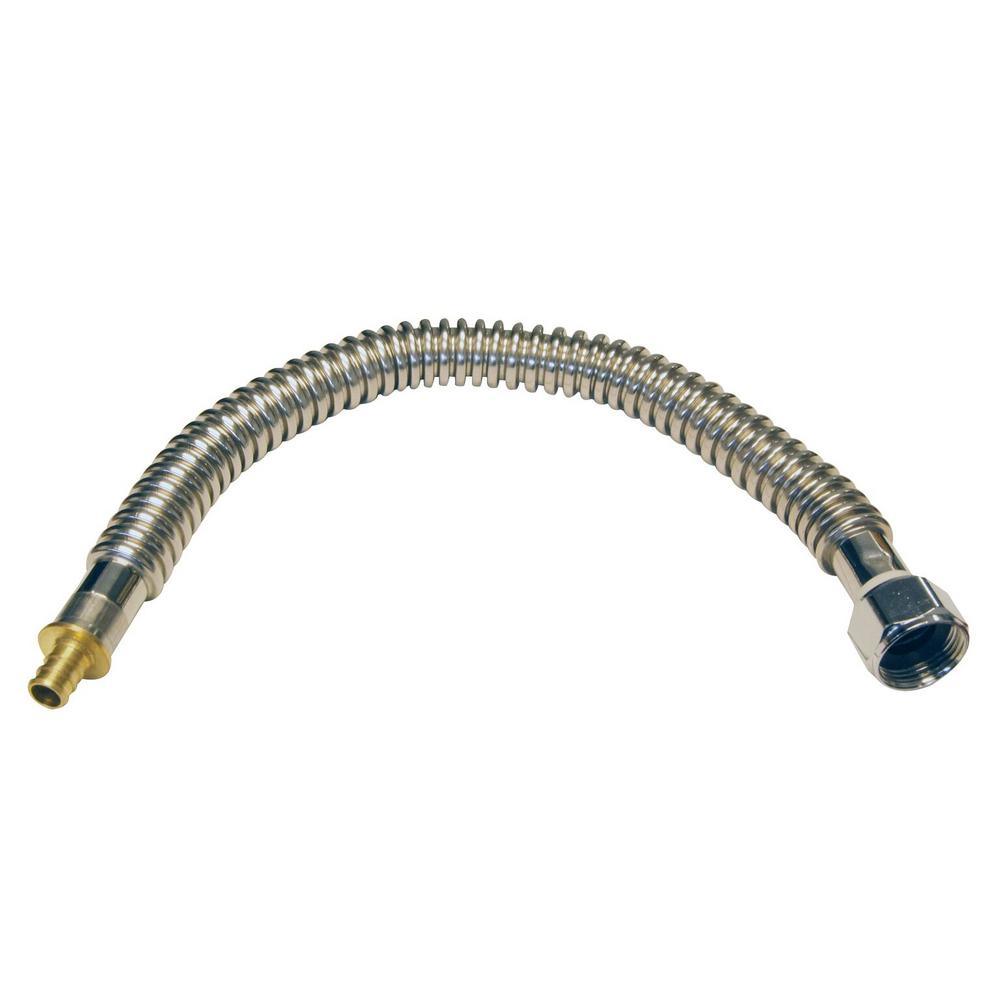

Apollo 1/2 in. Stainless Steel PEX Barb x 3/4 in. Female Pipe Thread x 18 in. Water Heater Connector
Published price — same for everyone
Out of stock — available on backorder
SKU 833480572
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

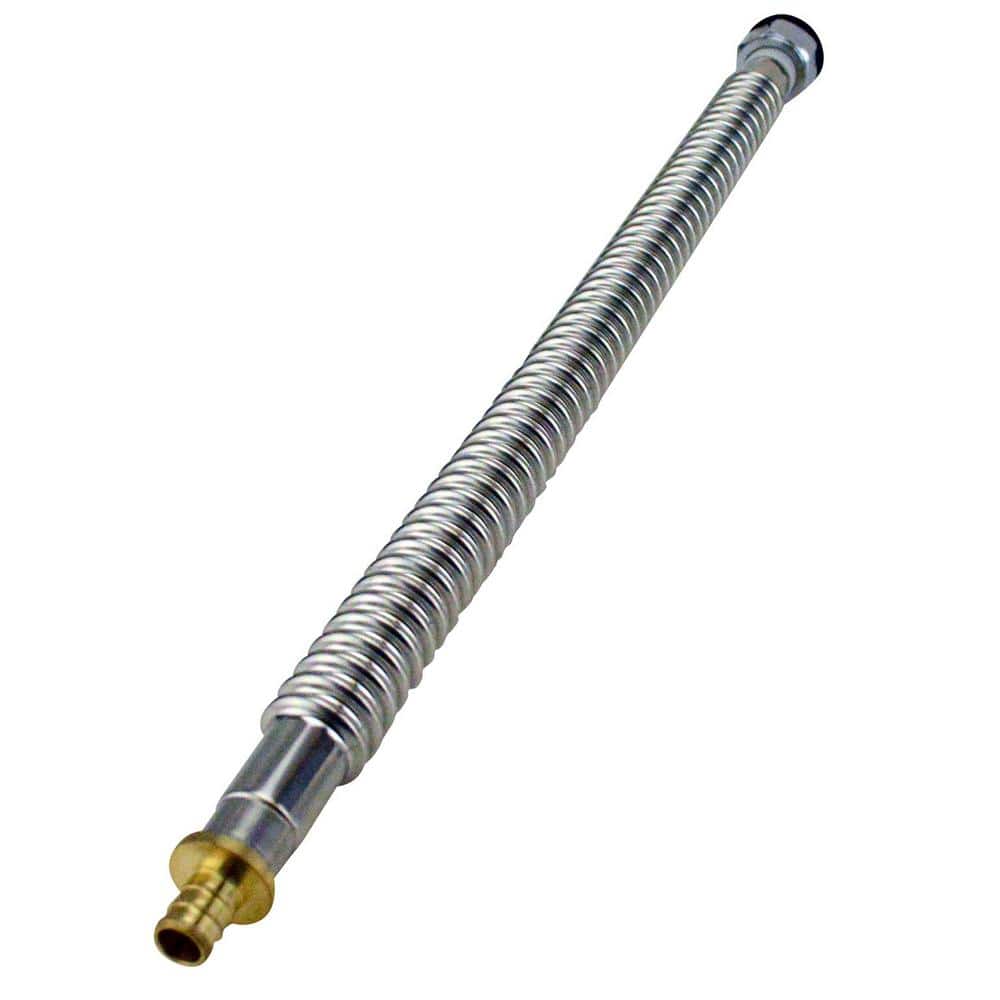

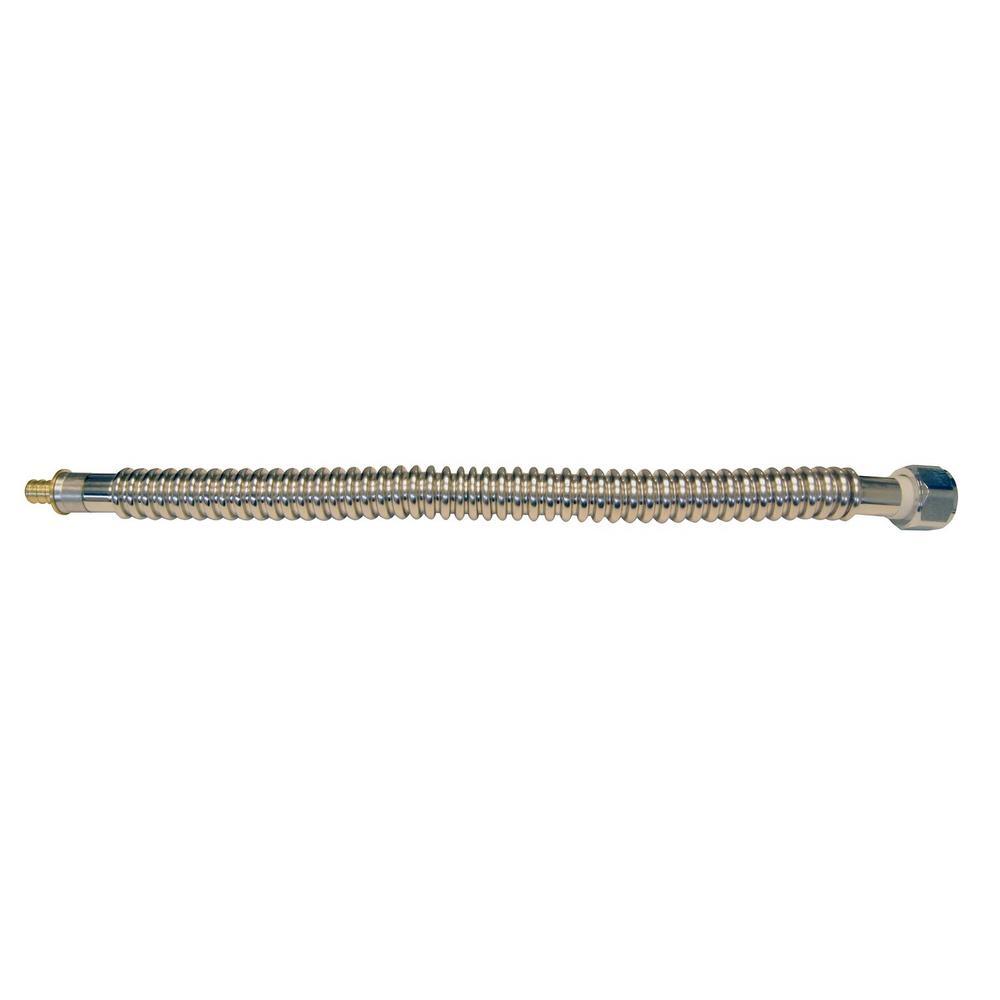

Stainless Steel PEX-to-FNPT Water Heater Connector, 18 in.

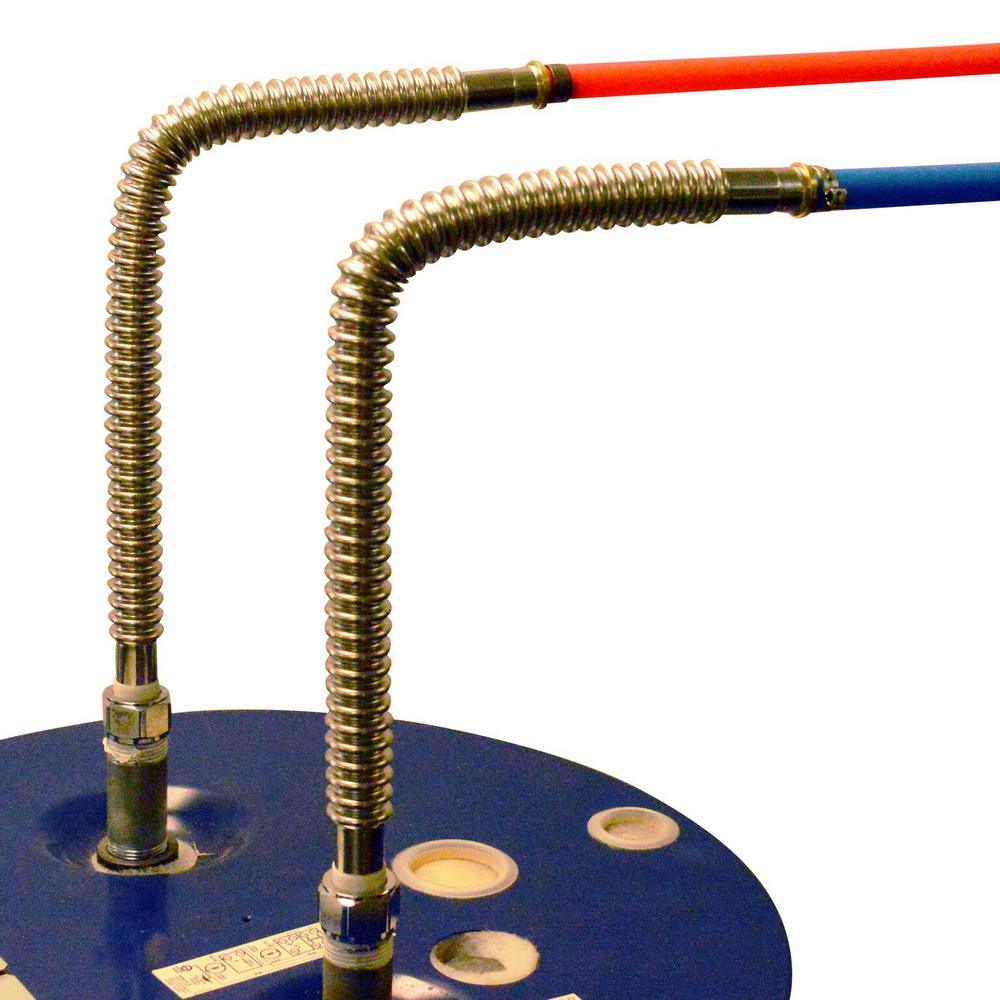

Durable corrugated stainless steel connector designed to join 1/2 in. PEX to a 3/4 in. FNPT water heater port. Bend-and-stay design allows tight-radius routing without kinking, delivering fast, reliable hot and cold water hookups.
Key Features:
- No-Kink Flex Design: Corrugated stainless steel maintains flow in tight bends and reduces stress on connections.

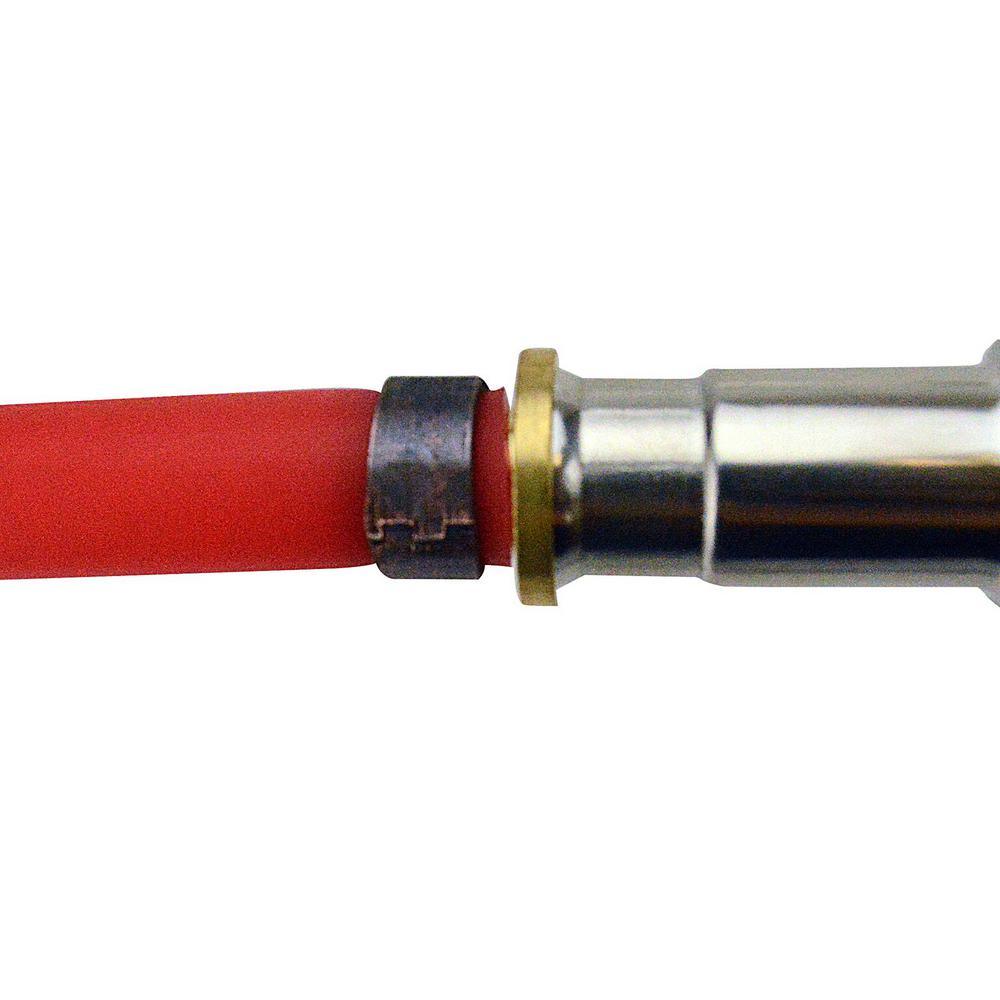

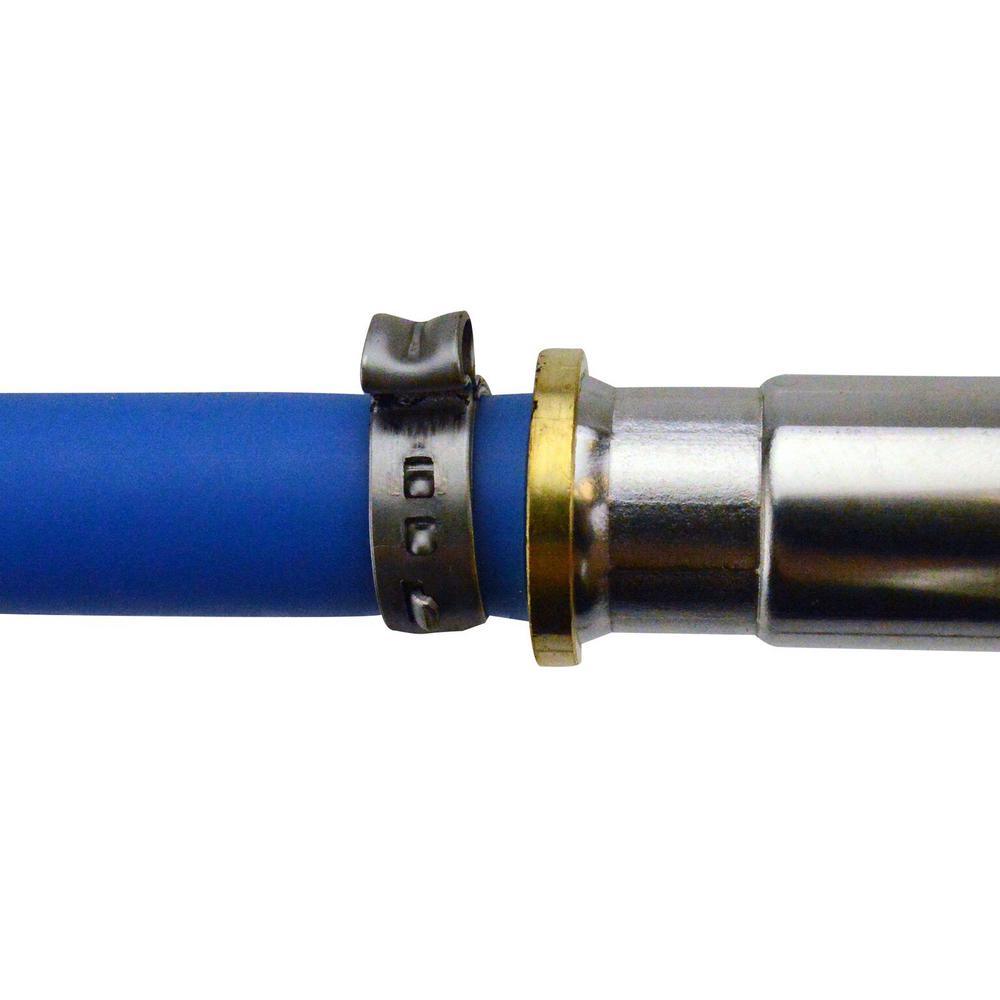

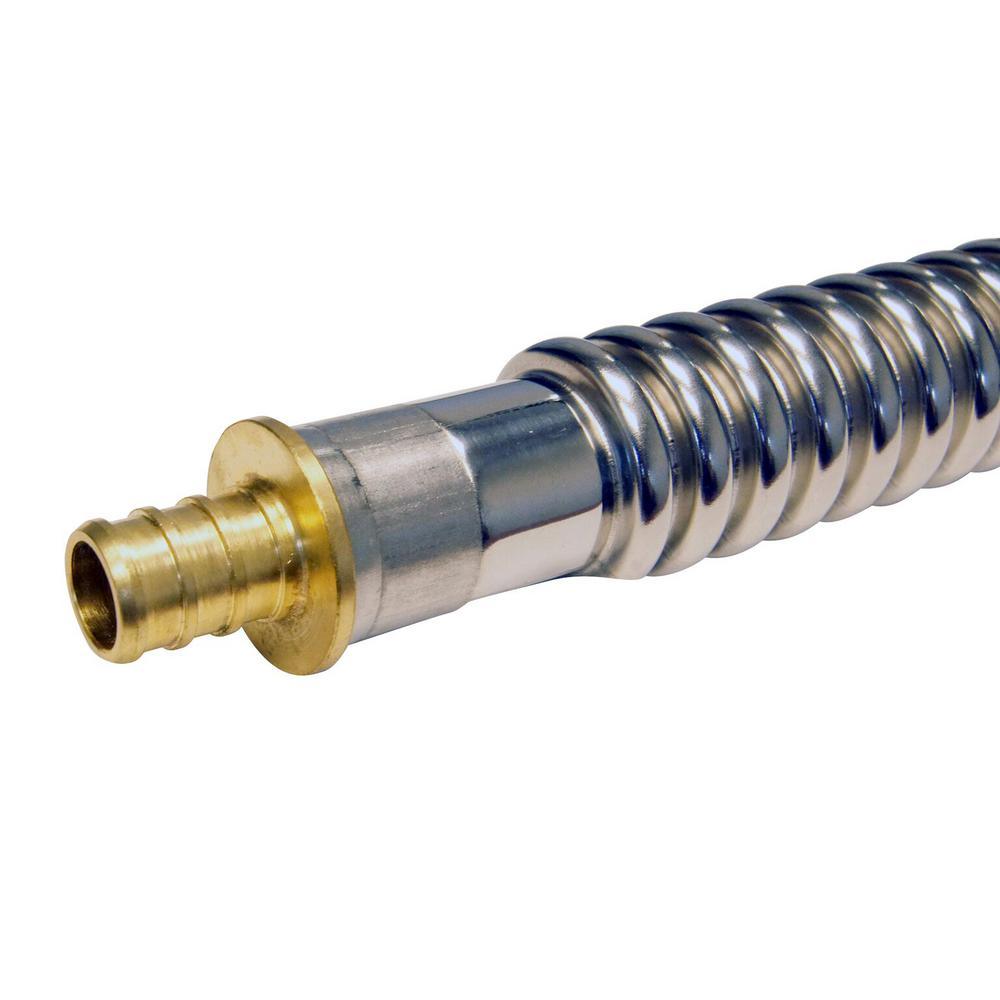

- PEX-B Compatible: 1/2 in. barb end secures with copper crimp rings, pinch clamps, or stainless sleeves.

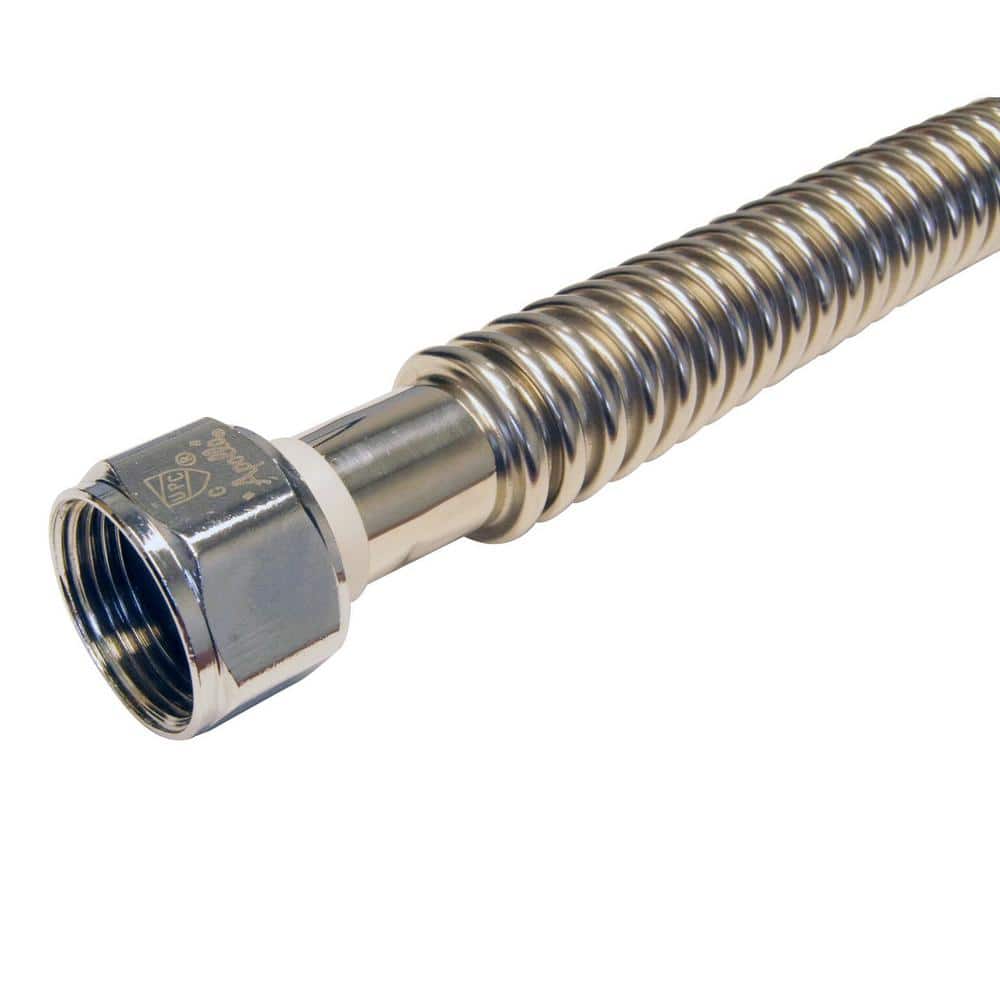

- Secure Heater Connection: 3/4 in. female pipe thread for standard water heater nipples; apply thread tape.
- Rugged Construction: Lead-free DZR brass ends and corrosion-resistant stainless steel body.
- High Performance: Rated up to 200 psi and 250°F; IAPMO listed to ASSE 1061/NSF 68 and meets UPC/IPC/cUPC.
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Connector Length | 18 in. |
| PEX Size | 1/2 in. barb |
| Water Heater Connection | 3/4 in. female pipe thread (FNPT) |
| Material | Corrugated stainless steel with lead-free DZR brass ends |
| Application | Potable water; hydronic heating |
| Finish Family | Silver Metallic |
| For Use With | Electric tank; Gas tank |
| Includes | No additional items included |
| Pack Size | 1 |
| Product Weight (lb.) | 0.315 lb |
| Dimensions (HxWxD) | 1.13 in x 18 in x 1.13 in |
| Standards/Listings | IAPMO listed; ASSE 1061/NSF 68; Meets UPC, IPC, cUPC; ASTM F1807 |
| Performance Ratings | Max working pressure 200 psi; Max temperature 250°F |
| Design Feature | Bend-and-stay; no-kink corrugation |
| Vent Part Type | Flexible Connector Vent |
| Manufacturer Warranty | 5 Year when installed per instructions |
Frequently Asked Questions (FAQ):
Q: What PEX systems is this compatible with?
A: Designed for 1/2 in. PEX-B using ASTM F1807 style crimp or clamp connections.
Q: Can it be used on both hot and cold lines?
A: Yes, it is suitable for potable hot and cold water and hydronic heating applications up to 250°F.
Q: How do I attach it to the water heater?

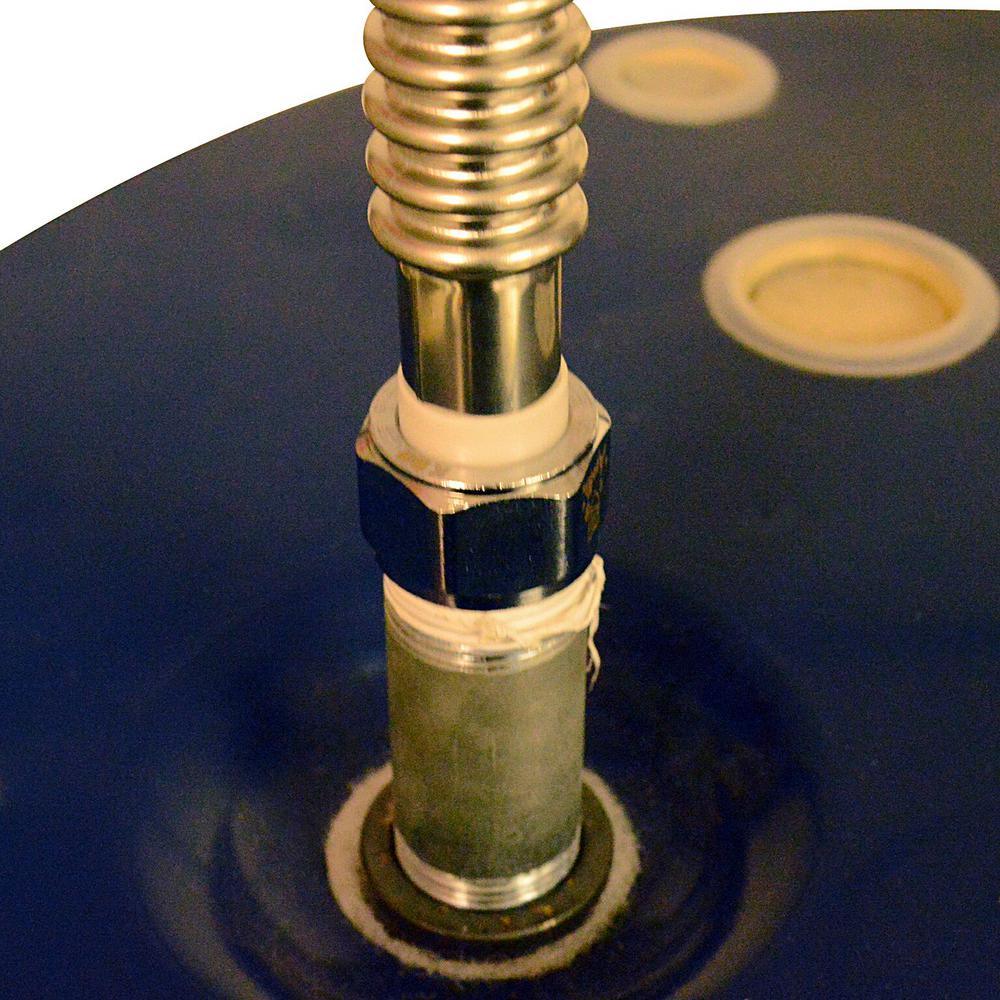

A: Wrap the heater’s male nipple with thread tape, thread the 3/4 in. FNPT end on, and tighten with pliers.
Q: Does it require special tools?
A: Standard PEX crimp or clamp tools for securing the barb end; no soldering required.
Q: What is the warranty?
A: 5-year limited warranty when installed per the published instructions.
Streamlined Utility with Lasting Shine
This stainless connector introduces a refined, architectural line to an otherwise utilitarian moment, bringing order and polish to your mechanical room. The corrugated profile is a subtle design note—sleek yet purposeful—that flexes neatly around obstacles. Pair it with color-coded PEX for a crisp, organized installation that feels intentional. It’s a small, luxe upgrade that elevates performance and presentation in equal measure.
Make your water heater hookup faster, cleaner, and more reliable—add this stainless PEX connector to your cart now.
